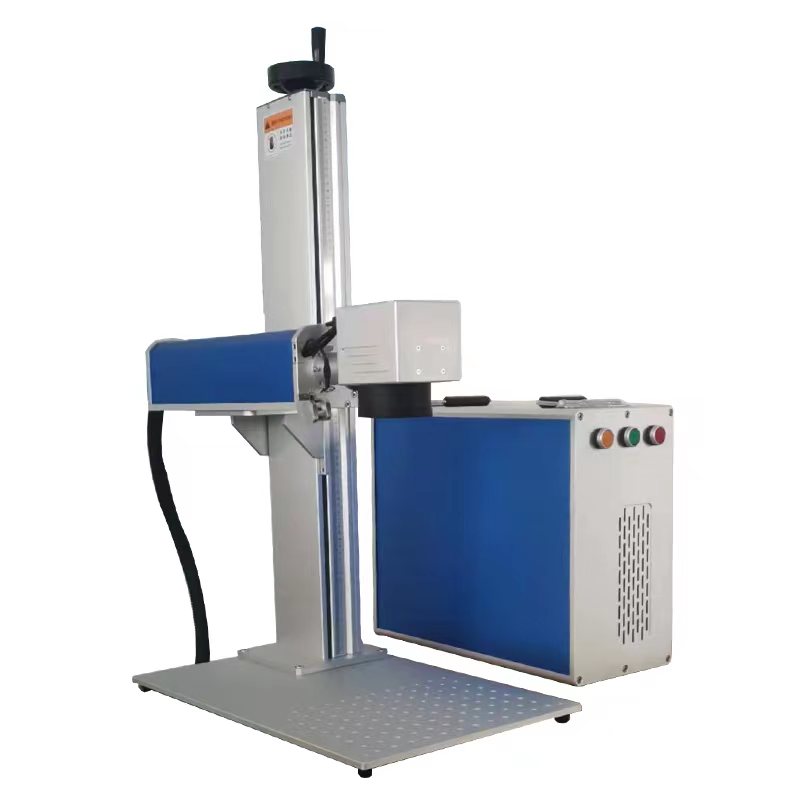

laser marking/cutting machine

1. The optical fiber laser marking machine uses the laser beam to mark the surface of various substances permanently. 2. The marking effect is to show the deep material through the evaporation of the surface material, or to "carve" the trace through the chemical and physical changes of the surface material caused by the light, 3. Or burn part of the material by the light, showing all kinds of patterns, characters, barcodes, and other graphics that need to be etched.





Main machine configuration

Laser source	JPT 50W 60W 80W 100W
Control card	Original BJJCZ card / EZCAD software
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	7000mm/s
Repeatability accuracy	±0.001mm
Working area	70*70mm ---300*300mm
Marking Format	Graphics, text, bar codes, two-dimensional code, batch number,automatically marking the date, serial number,frequency
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt
Working environment	Clean and dust free or dust less ,5%-75%,free of condensed water
Acceptable materials	metal, nonmetal, mirror, plastic, leather, ,paper etc..

---
