Product Description
FZ-20W 30w 50w portbale fiber laser marking machine adopts the most advanced technology of the world, is called as The Third Generation Laser Marking Machine by industry in the world. Because it has features like the best optical mode; excellent quality of laser beam; long operating life; the highest electro-optical conversion efficiency; small size, reliable and without maintenance; suited for all metal and some kinds of non-metal marking. It has been loved by customer in lots of fields, as soon as it has been introduced to the market.
Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional. The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.This Portable Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.
FZ-F10/20/30/50 | |
Laser power | 10W/20W/30W/50W |
Laser Wavelength | 1064±10nm |
Q-frequency | 20KHz~100KHz |
Divergence | 0.3mard |
Marking range | 110*110mm/150*150mm/200*200mm/300*300mm |
Minimum line width | 0.01mm |
Minimum character | 0.1mm |
Marking speed | 7000mm/s |
Marking depth | 0 ~1mm |
Engraving line speed | ≤7000mm/s |
Repeatability accuracy | ±0.001mm |
Beam quality | M2:1.2~1.8 |
Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number,frequency,etc. |
Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
working voltage | 220V±10%/50Hz/4A |
Unit power | 0.5kw |
Working environment | Clean and dust free or dust less |
Working (Humidity) | 5%-75%,free of condensed water |
Laser module life | 100000 hours |
Net weight | 35kg |
Warranty | 36 months |
Computer system support | Win xp,win7, win8,wins 10 |

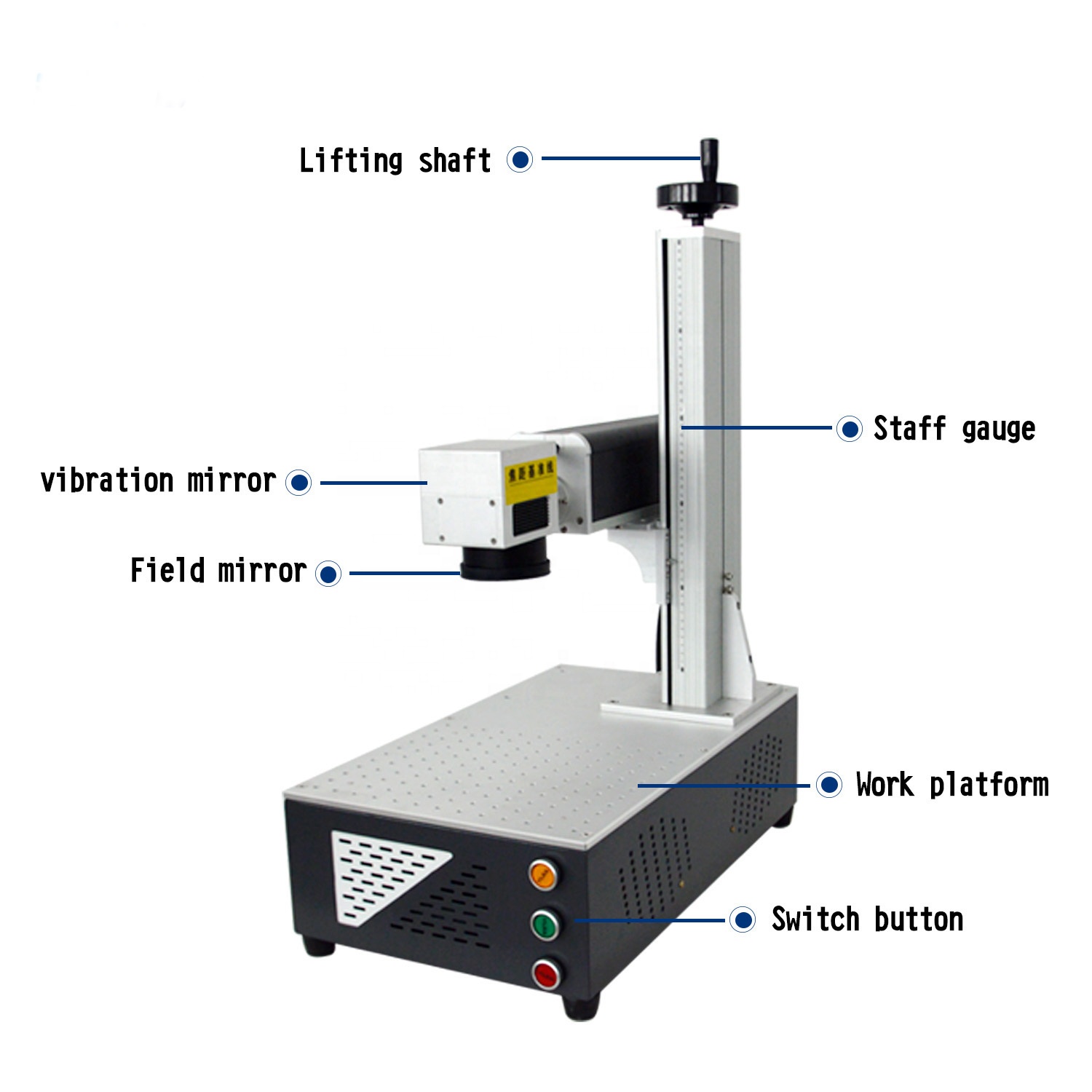

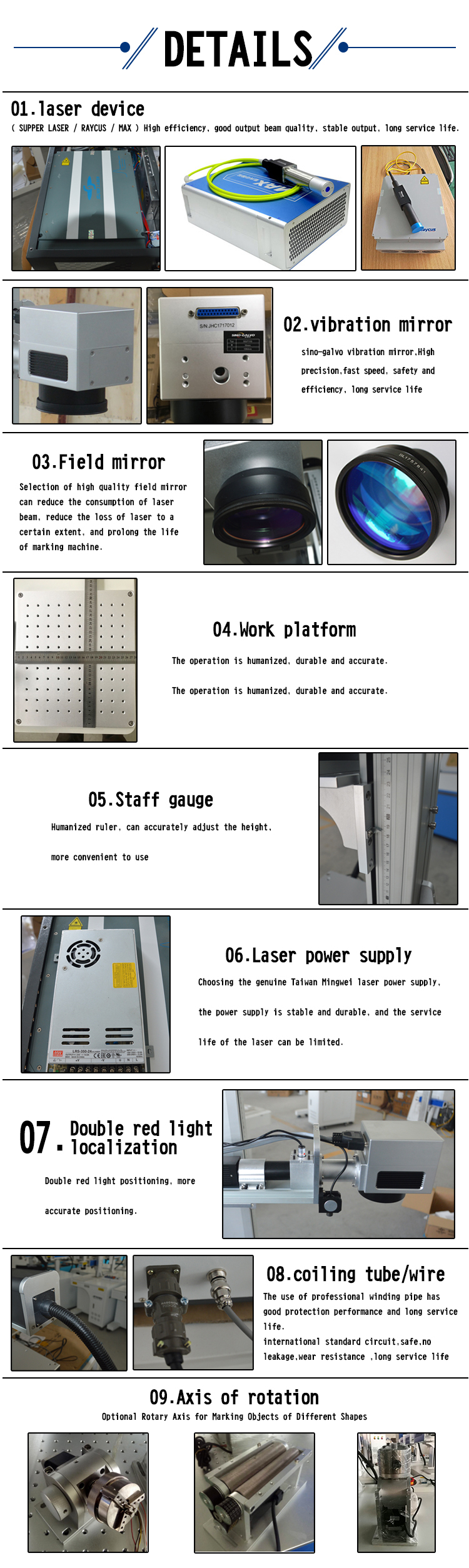

Detailed Images
laser marking machine easy to move ,save you room.
High precision with repetition as tiny as 0.2mm.
Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel.
Fast marking speed.
Simple and convenient operation. Easy to learn and handle.
Create intelligent designs.
Stable structure, little vibration during work.
For different marking requirement, we have working platform
Adopting Air Cooling.
Run without maintenance.
No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
Low power consumption: low cost, only 0.5kw per hour.
Perfect performance, 24 hours continuous working ability.
Long working life.
For long-term consideration, the cost is much lower than other laser marking machine
Application

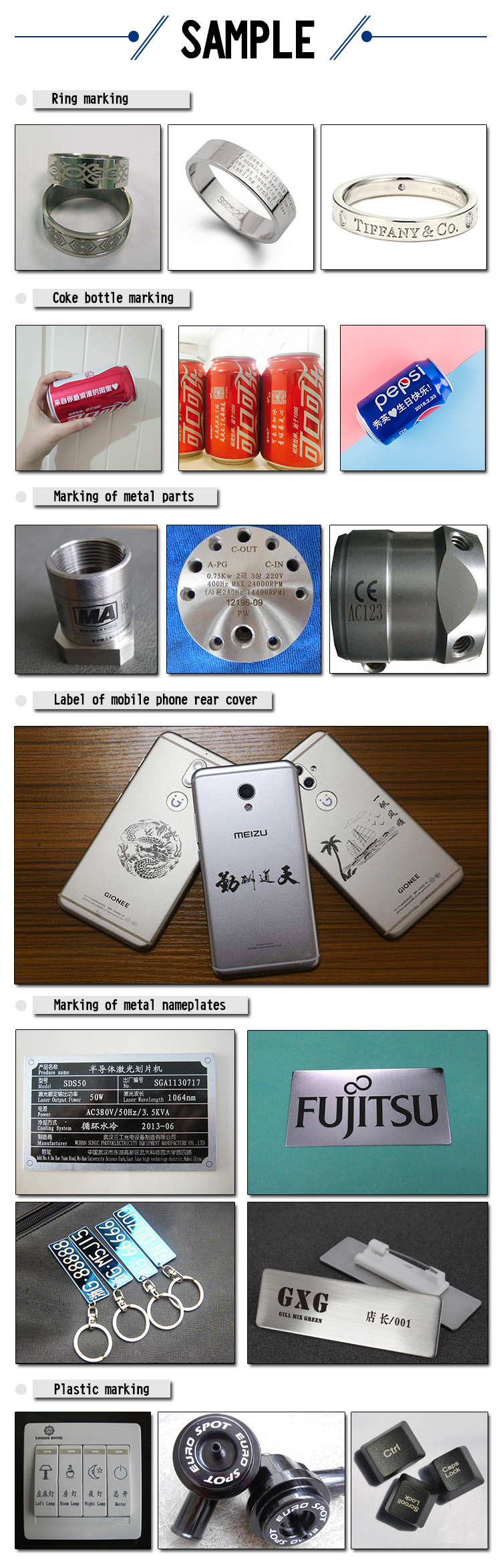

It can mark on the surface of many metal and non-metallic ,widely used in the marking of below area :industrial bearings,gear,various automobile components,hardware tools,aerospace components,IC chip,computer accessories,watch,electronic and communication products,wire and cable,food package,jewelry etc .
Packaging & Shipping
Packaging Details:Plywood Cases
Delivery Details:5-7 working days
The advantages of Plywood Case Package:
Firstly, plywood case, its compressive strength and bearing quality is better, is the
market of choice for the goods of high-weight packaging
Secondly, the board area is big, the soil structure is good,and operational process is simple,
So it is better in leakproofness and waterproof.
Thirdly , when importing the plywood case is with fumigation-free , the procedure is simple.
